Installation, configuration and usage¶

New with Version 1.0.26: deduplication at the backend level

Since the release 1.0.26, the super handler alert action and custom command support handling risk duplicates at the backend level.
Duplicated risk events can happen for a number of reasons (overlap in the Risk Rules, etc), are tedious to deal with and impact the Risk workflow and calculations in many ways.
This works by keeping track of the risk events generated with their factors (use case, risk_object_type, risk_object) in a KVstore collection at the Python level lowest level.
The Kvstore collection transforms name is risk_superhandler_dedup.
When the risk action is requested, the backend verifies when the latest risk event was generated for the same factors.
If the time spent since since the last event was created is less than the minimal time allowed (option: min_sec_since_last_riskevent, 30 minutes by default), the risk event creation is refused, avoiding the generation of a duplicated risk event.
The dedup option is by default disabled (option: dedup is set to False)

Installation¶

Install the Add-on using supported Splunk deployment methods, either via the UI for a standalone Splunk instance, or via the SHC deployer in a Search Head Context

Create your risk based alerting use case lookup reference¶

Risk Based Lookup file requirements¶

Start by creating your Risk Based Alerting reference lookup file, the CSV file requires two fields:

A use case unique reference, you can name the column either way, this should reference uniquely the Risk Rule use case, example: risk_uc_id
A JSON object defining the Risk Rules for the use case (syntax and options are described below), the name of the column is mandatory called json_dict

For the purpose of the documentation, the following naming convention is used:

risk_uc_ref.csv

The Lookup file should be shared at the system level, and can be called in SplunkEnterpriseSecurity application context as:

| inputlookup risk_uc_ref.csv

JSON Risk Rule definition¶

The second field json_dict is designed to contain the well formed JSON object defining the Risk rules, with the following logic:

A field search_name defines the real name of the Risk Rule correlation search, it defines as well the value for the Splunk source Metadata (handled by the collectrisk command)
One or more JSON objects define the risk_object, risk_object_type, risk_message and risk_score
One or more JSON objects define the threat_object and threat_object_type

A first JSON Risk definition example¶

Let’s assume:

Our Risk Rule correlation generates security events for an endpoint, using the CIM convention dest: the risk object value is dest, the type of the risk object is system
We associate a risk_score of 10 with this risk object
Finally, we generate a risk_message which will be expanded automatically using the risk_object token

Our JSON object:

[{"search_name": "Threat - UC-EDR-001 - Rule"}, {"risk_object": "dest", "risk_object_type": "system", "risk_score": 10, "risk_message": "Security event detected on endpoint dest=$risk_object$"}]

Defining an additional risk object¶

Additionally, our Risk Rule correlation search renders a user information, we can complete our JSON rule with an additional JSON object:

{"risk_object": "user", "risk_object_type": "user", "risk_score": 20, "risk_message": "Endpoint security event detected involving user=$risk_object$"}

Our JSON definition is now:

[{"search_name": "Threat - UC-EDR-001 - Rule"}, {"risk_object": "dest", "risk_object_type": "system", "risk_score": 10, "risk_message": "Security event detected on endpoint dest=$risk_object$"}, {"risk_object": "user", "risk_object_type": "user", "risk_score": 20, "risk_message": "Endpoint security event detected involving user=$risk_object$"}]

If:

Any of the risk_object is available as part of Risk Rule correlation search results, a new risk event will be created accordingly
As we have two risk objects, a single result from the correlation search can potentially lead to the generation of 2 risk events
Any field available as part of the correlation search result, is available in the risk event too

Defining the threat objects¶

As for the risk objects, we can have one of more combinations of threat objects, for example:

Our correlation search renders a process value, the threat_object is process, the threat_object_type is process (the first is the value, the second the category)
In addition, it renders the hash value of the process, the threat_object is file_hash, the threat_object_type is hash

Each threat JSON object will look like:

the first threat object:

{"threat_object_field": "process", "threat_object_type": "process"}

the second threat object:

{"threat_object_field": "file_hash", "threat_object_type": "hash"}

Our final JSON definition is now:

[{"search_name": "Threat - UC-EDR-001 - Rule"}, {"risk_object": "dest", "risk_object_type": "system", "risk_score": 10, "risk_message": "Security event detected on endpoint dest=$risk_object$"}, {"risk_object": "user", "risk_object_type": "user", "risk_score": 20, "risk_message": "Endpoint security event detected involving user=$risk_object$"}, {"threat_object_field": "process", "threat_object_type": "process"}, {"threat_object_field": "file_hash", "threat_object_type": "hash"}]

Let’s pretty print:

[{
    "search_name": "Threat - UC-EDR-001 - Rule"
}, {
    "risk_object": "dest",
    "risk_object_type": "system",
    "risk_score": 10,
    "risk_message": "Security event detected on endpoint dest=$risk_object$"
}, {
    "risk_object": "user",
    "risk_object_type": "user",
    "risk_score": 20,
    "risk_message": "Endpoint security event detected involving user=$risk_object$"
}, {
    "threat_object_field": "process",
    "threat_object_type": "process"
}, {
    "threat_object_field": "file_hash",
    "threat_object_type": "hash"
}]

Note:

You can fill the lookup in pretty print format

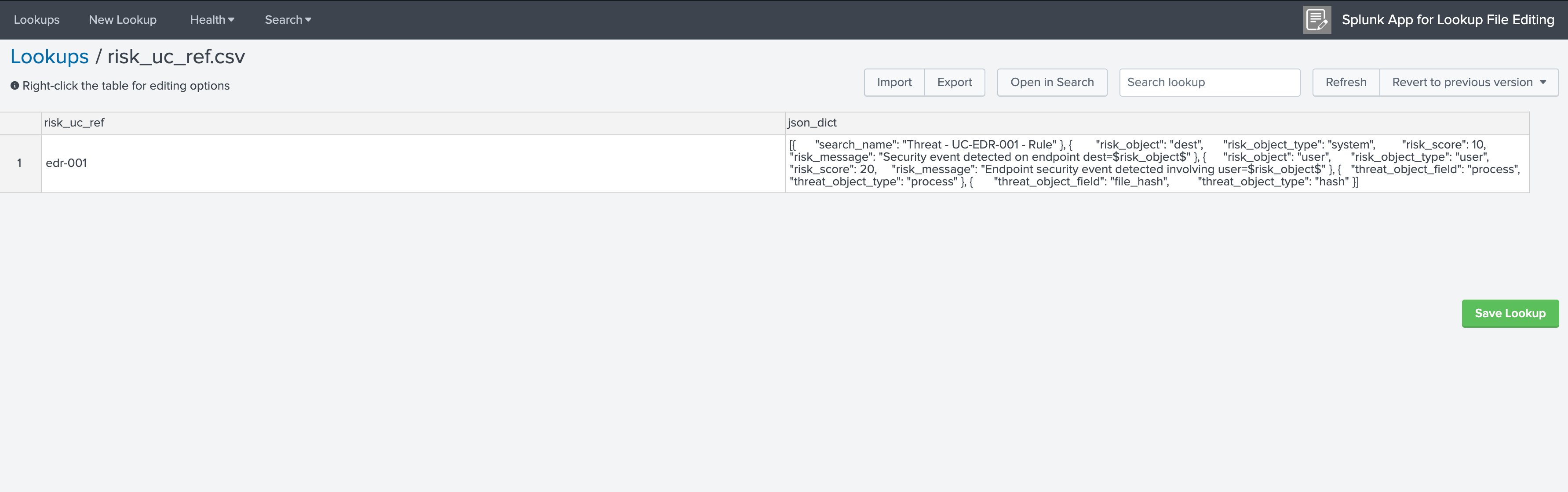

Lookup overview in the Splunk app for Lookup Fil Editing:

Our final lookup reference¶

Finally, our lookup is now:

risk_uc_ref,json_dict
edr-001,[{"search_name": "Threat - UC-EDR-001 - Rule"}, {"risk_object": "dest", "risk_object_type": "system", "risk_score": 10, "risk_message": "Security event detected on endpoint dest=$risk_object$"}, {"risk_object": "user", "risk_object_type": "user", "risk_score": 20, "risk_message": "Endpoint security event detected involving user=$risk_object$"}, {"threat_object_field": "process", "threat_object_type": "process"}, {"threat_object_field": "file_hash", "threat_object_type": "hash"}]

Complete the lookup with all Risk Rule correlation searches.

JSON consistency¶

It is recommended to verify the consistency of the JSON object before saving changes in the reference lookup:

https://jsonlint.com/

What if the JSON object definition is inconsistent?

If for some reasons, the JSON is not well formatted, the backend will raise an exception, example:

ERROR risksuperhandler.py stream 254 Failure to load the json object, use case uc_ref_field="edr-003", exception="Expecting ',' delimiter: line 1 column 211 (char 210)"

Hint

If you are using the streaming custom command, the Risk Super handler will not modify the output of the search
If an exception is raised for some reasons, it will not prevent the output of the search to avoid affecting use cases

Using the Risk Super alert action¶

Super Risk modular alert action¶

Enabling the alert action at the Risk Rule correlation search level¶

Now that we have configured our RBA lookup, the Risk Super alert action needs to get called at the Risk Rule correlation level, this gets configured via the Correlation Search Editor providing 2 information:

uc_ref_field which defines the name of the field containing the use case reference in both the correlation search results and the use case lookup reference
uc_lookup_path which defines the Splunk home relative system path to the lookup file

For example, in our case:

uc_ref_field: risk_uc_ref
uc_lookup_path: SplunkEnterpriseSecuritySuite/lookups/risk_uc_ref.csv

And that’s it! The entire knowledge is contained in the lookup file, from the Splunk UI this looks like:

Calling the alert action manually for testing purposes¶

You can call the alert action manually, for the testing or verification purposes, with our example:

| makeresults
| eval dest="acme-endpoint-srv001", user="jsmith", process="very_bad.exe", file_hash=md5(process)

```This defines the use case reference```
| eval risk_uc_ref="edr-001"

```This calls the Risk Super modular alert action for testing purposes```
| sendalert risk_super param.uc_lookup_path="SplunkEnterpriseSecuritySuite/lookups/risk_uc_ref.csv" param.uc_ref_field="risk_uc_ref"

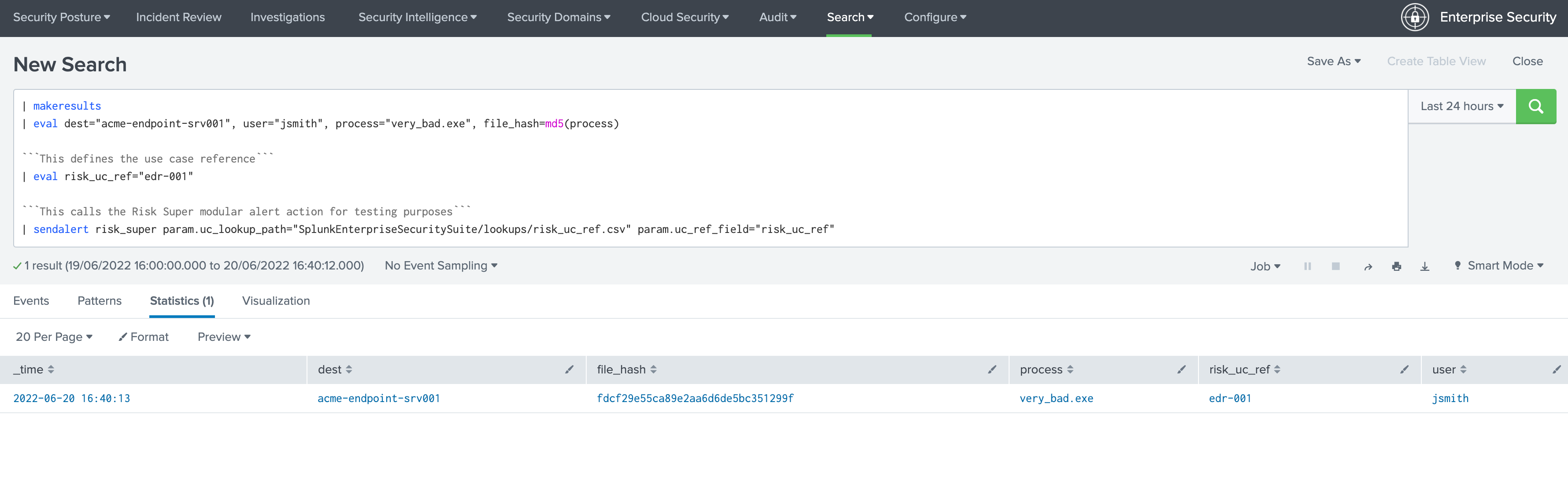

What this looks like:

Locate the execution logs:

The internal log of the modular alert execution are indexed automatically in the cim_modactions:

index="cim_modactions" sourcetype="modular_alerts:risk_super"

You can change the logging level, which defaults to INFO, either by deploying a local/ta_risk_superhandler.conf:

[logging]
loglevel = INFO

You can as well make the application visible (go in Manage applications then edit properties), then access the application configuration page.

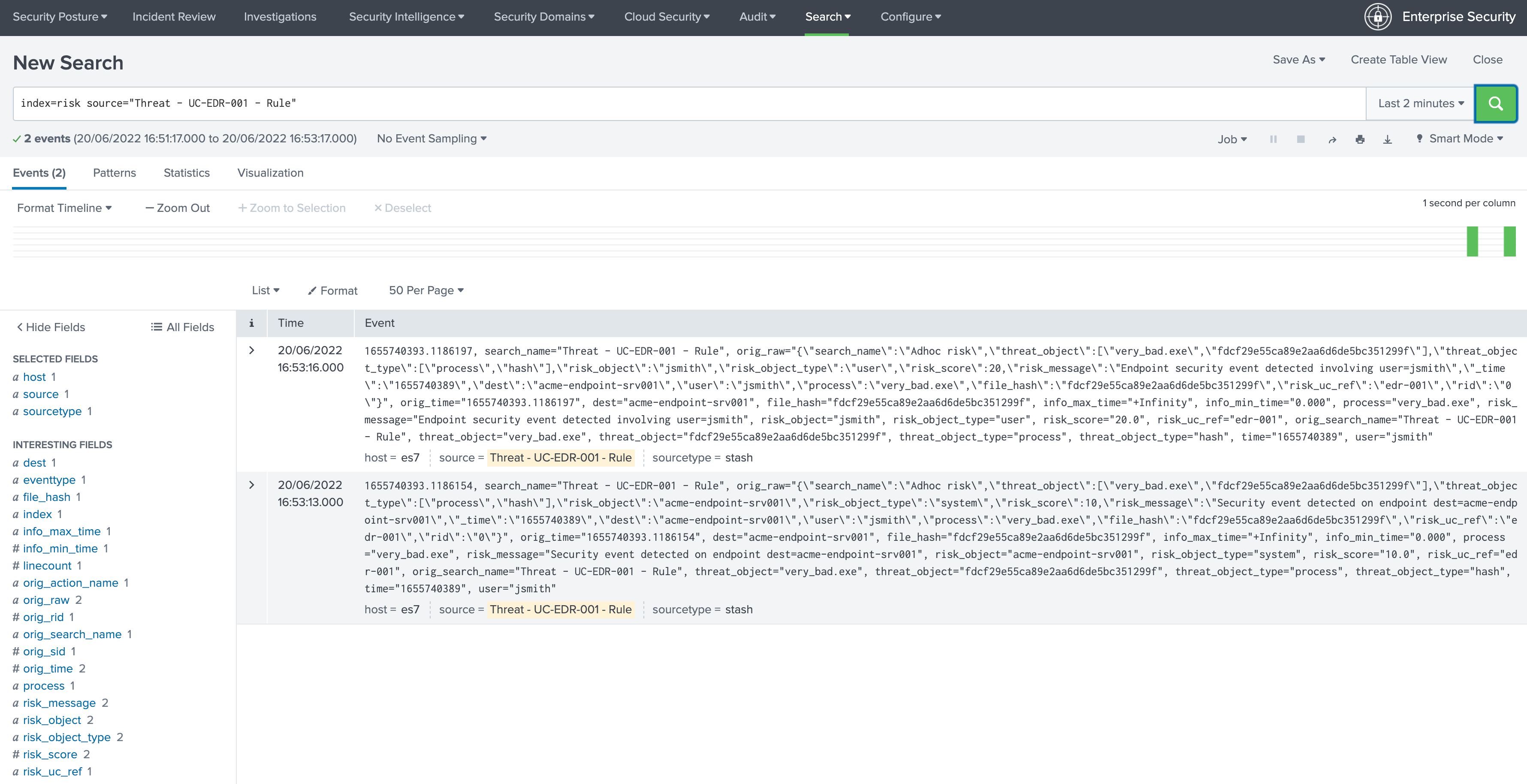

If everything was configured properly, you will find 2 risk events newly created:

index=risk source="Threat - UC-EDR-001 - Rule"

What this looks like:

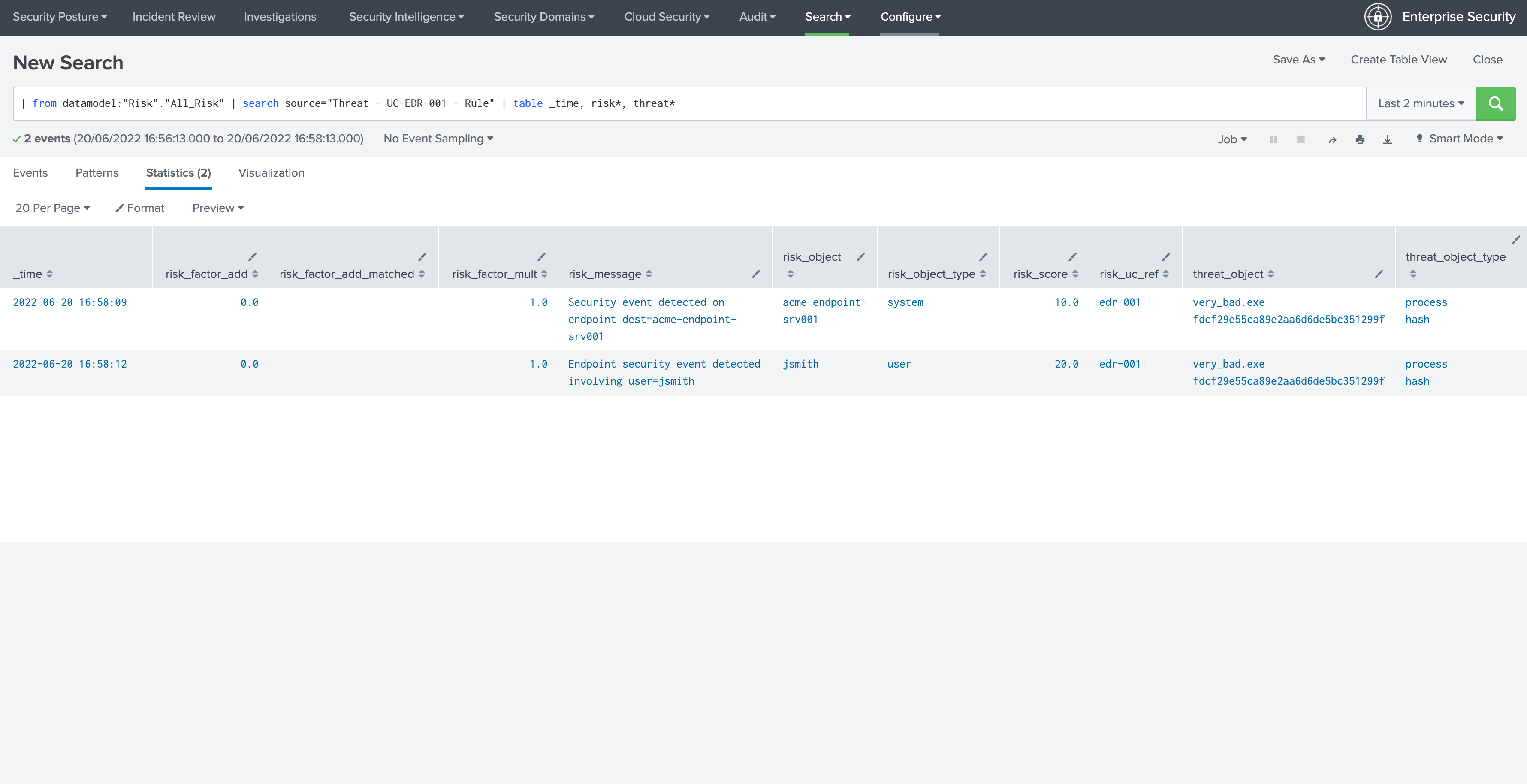

Let’s use the datamodel now:

| from datamodel:"Risk"."All_Risk" | search source="Threat - UC-EDR-001 - Rule" | table _time, risk*, threat*

What this looks like:

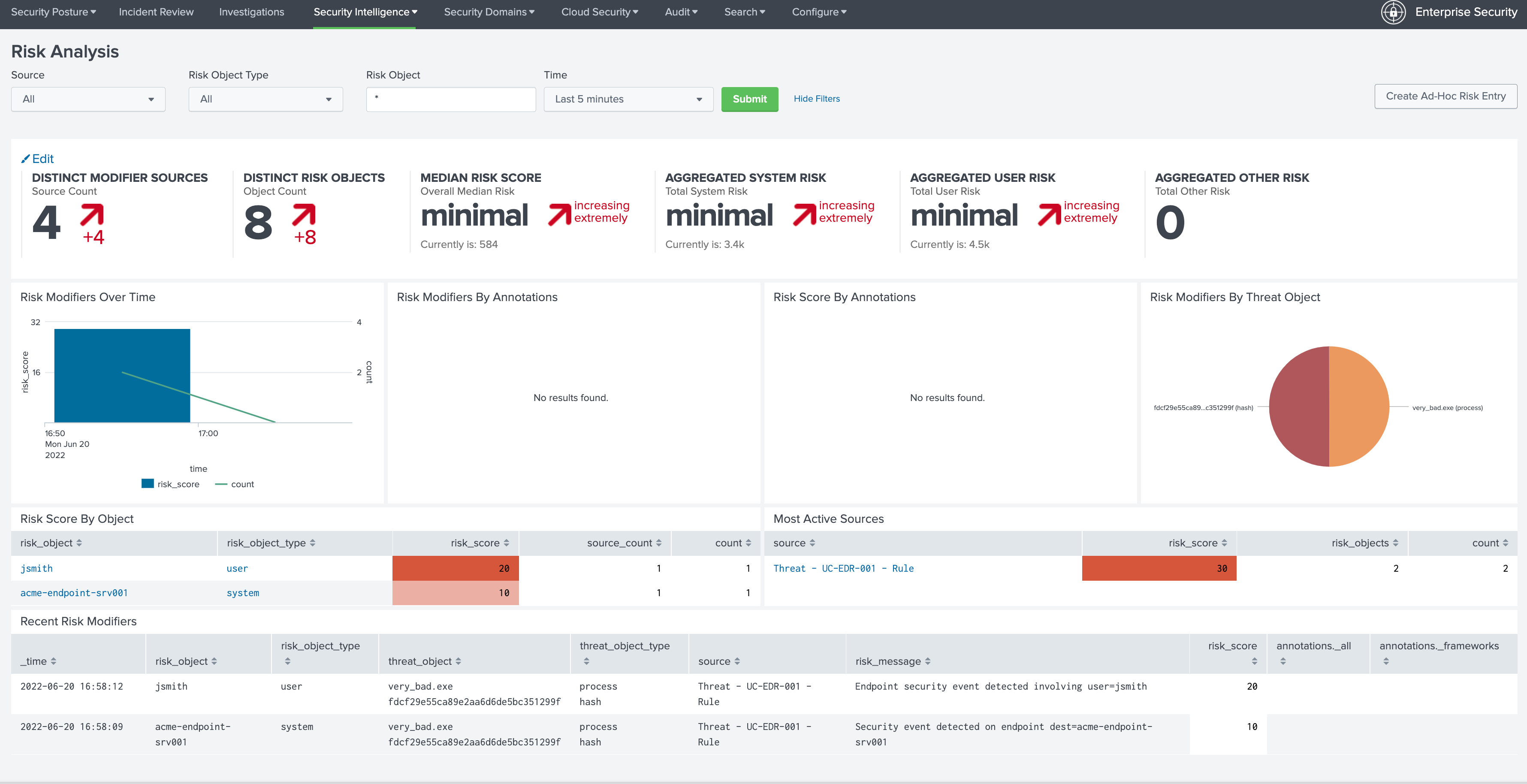

Shortly after, in the Risk Analysis UI:

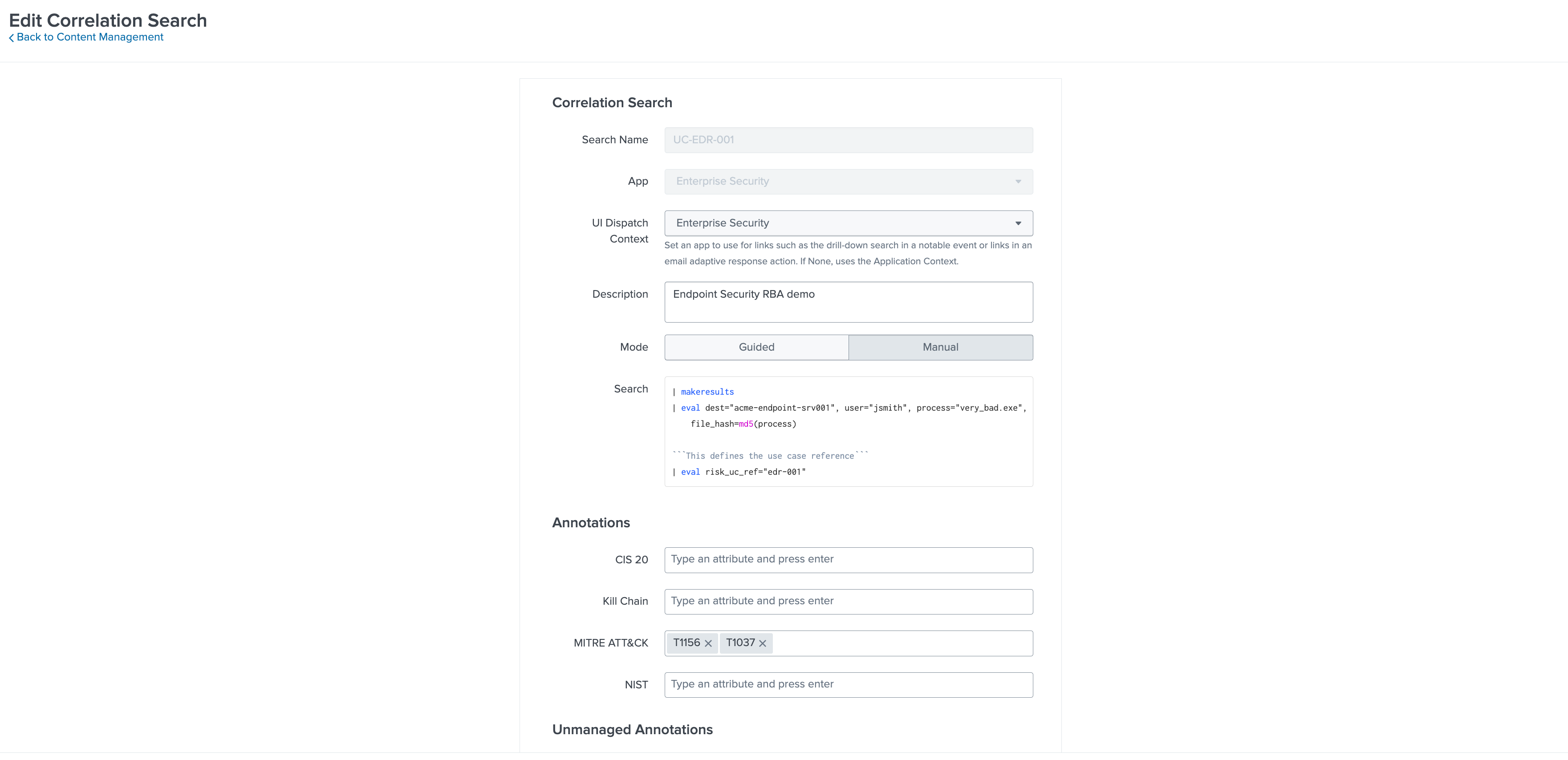

Note that we don’t have any annotation available yet, this is because we haven’t created yet a proper correlation search, so our search_name does not lead to any annotation, let’s create a proper correlation search and sets some random MITRE technics:

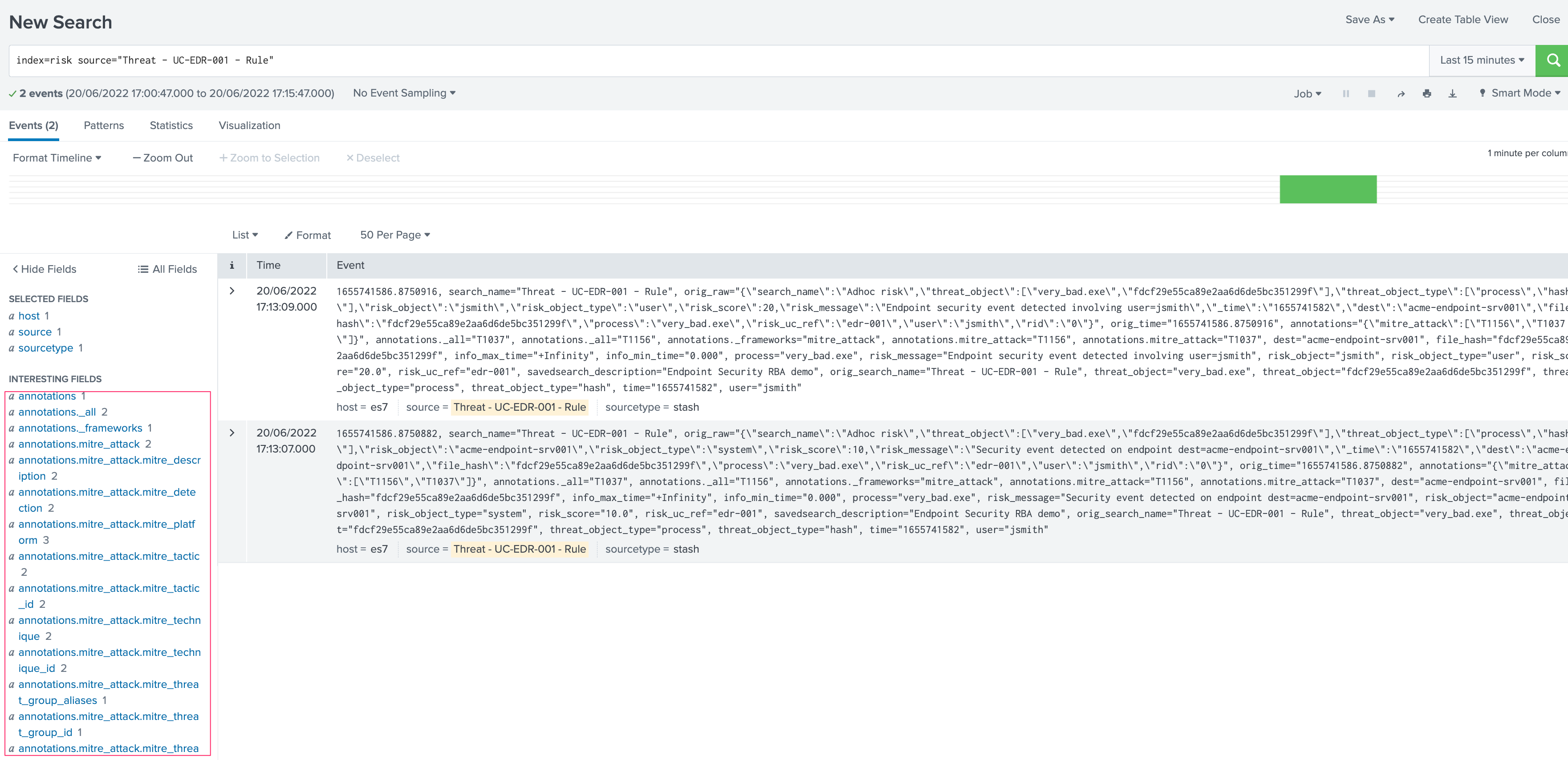

When it was executed at least once, we can now see the annotations:

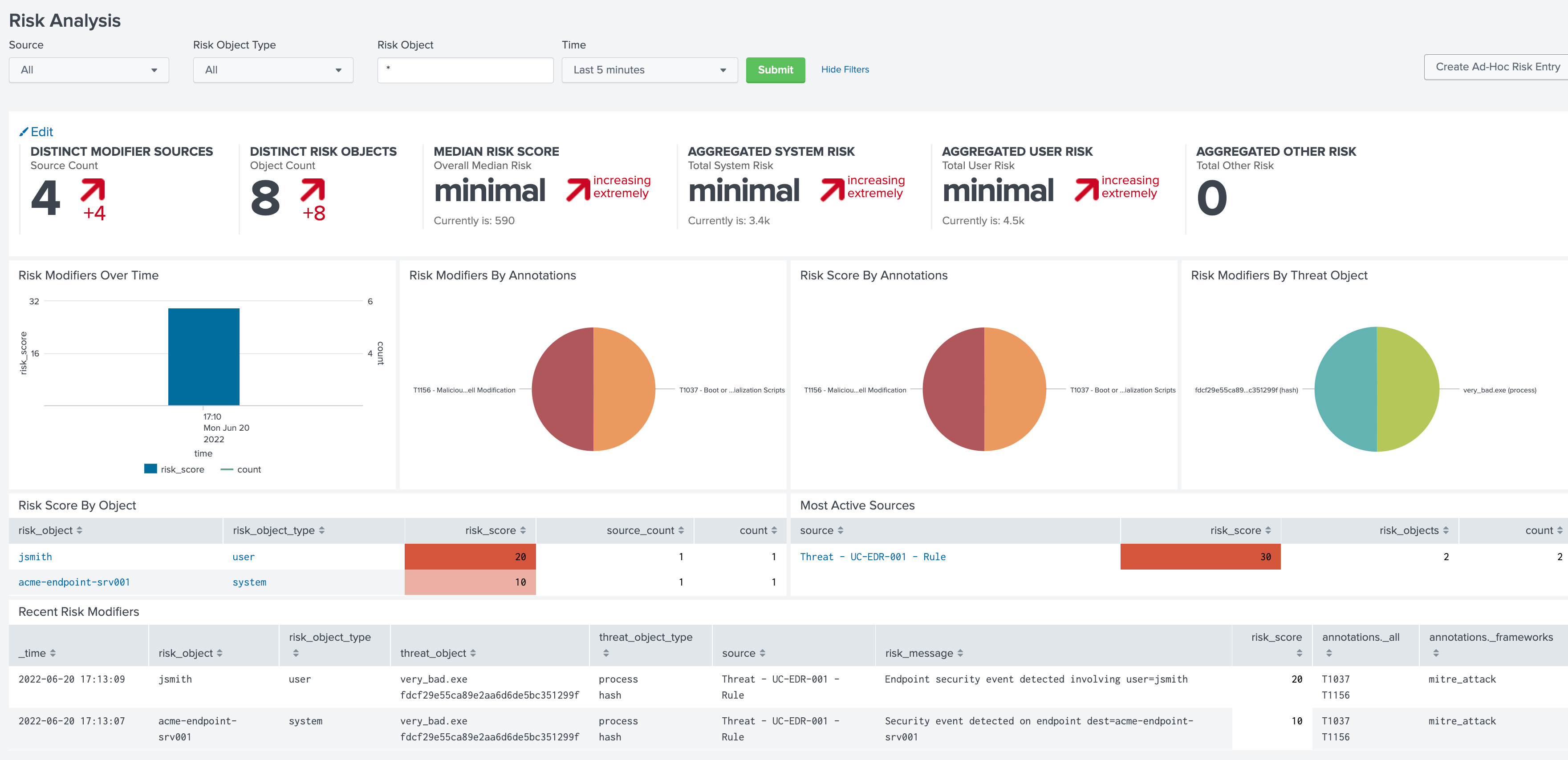

In the Risk UI:

All good!

Using the Risk Super Handler custom command¶

Similarly to the Risk Modular Alert action, you can call a streaming custom command to trigger the risk creation, as part of your search results.

This custom command is called risksuperhandler and behaves entirely as the modular alert action does.

In our correlation search example, this would be:

| makeresults
| eval dest="acme-endpoint-srv001", user="jsmith", process="very_bad.exe", file_hash=md5(process)

```This defines the use case reference```
| eval risk_uc_ref="edr-001"

```This calls the Risk Super modular alert action for testing purposes```
| risksuperhandler uc_lookup_path="SplunkEnterpriseSecuritySuite/lookups/risk_uc_ref.csv" uc_ref_field="risk_uc_ref"

Execution logs will be available in:

index=_internal sourcetype="risk:superhandler"

Which leads to the exact same results in the Risk index, Datamodel and UI.

Deduplicating Risk Events at the backend level¶

Deduplicating concept¶

With the TA-risk-superhandler starting from version 1.0.26, you can rely on the backend to automatically avoid generating duplicated risk events.

This is is achieved with a simple process, in Python, which involves relying on a Splunk KVstore collection to keep track of the risk factors and the latest time information per risk factor combination:

When the dedup option is enabled, either when using the custom command or the Risk alert action, the application interacts with a KVstore collection to keep track of the latest risk event
The KVstore collection is named risk_superhandler_dedup
The following information are tracked when dedup is enabled: mtime, cim_entity_zone, risk_uc_ref, risk_object_type, risk_object
mtime contains the last epoch time when a risk event was created for the same combination of factors.
When calling the backend with dedup, it will automatically check if the cim_entity_zone field is part of the results record, if so, this information is added to the context.
The KVstore _key value is used as the md5 hash of the combination of the factors:

if cim_entity_zone is available, the md5 hash is calculated as:

f"{uc_ref}:{risk_cim_entity_zone}:{risk_object_type}:{risk_object}"

otherwise:

f"{uc_ref}:{risk_object_type}:{risk_object}"

When a new risk event is requested, the backend calculates the time spent in seconds since the latest creation of a risk event for the same md5 hash.
It then compares this time with the min_sec_since_last_riskevent option, which defaults to 30 minutes.
If the time spent is less than the min_sec_since_last_riskevent option, the risk event creation is refused, avoiding the generation of a duplicated risk event.

Demoing the deduplication step by step¶

Let’s consider the following example, we generate a first risk event using makeresults and the custom command:

using the custom command:

| makeresults
| eval cim_entity_zone="acme01", dest="acme-endpoint-srv001", user="jdoe", process="bad.exe", file_hash=md5(process)
| eval risk_uc_ref="edr-001"
| risksuperhandler uc_lookup_path="SplunkEnterpriseSecuritySuite/lookups/risk_uc_ref.csv" uc_ref_field="risk_uc_ref" dedup="True"

using the alert action:

| makeresults
| eval cim_entity_zone="acme01", dest="acme-endpoint-srv001", user="jdoe", process="bad.exe", file_hash=md5(process)
| eval risk_uc_ref="edr-001"
| sendalert risk_super param.uc_lookup_path="SplunkEnterpriseSecuritySuite/lookups/risk_uc_ref.csv" param.uc_ref_field="risk_uc_ref" param.dedup="1"

After running, this command, we can find two risk events:

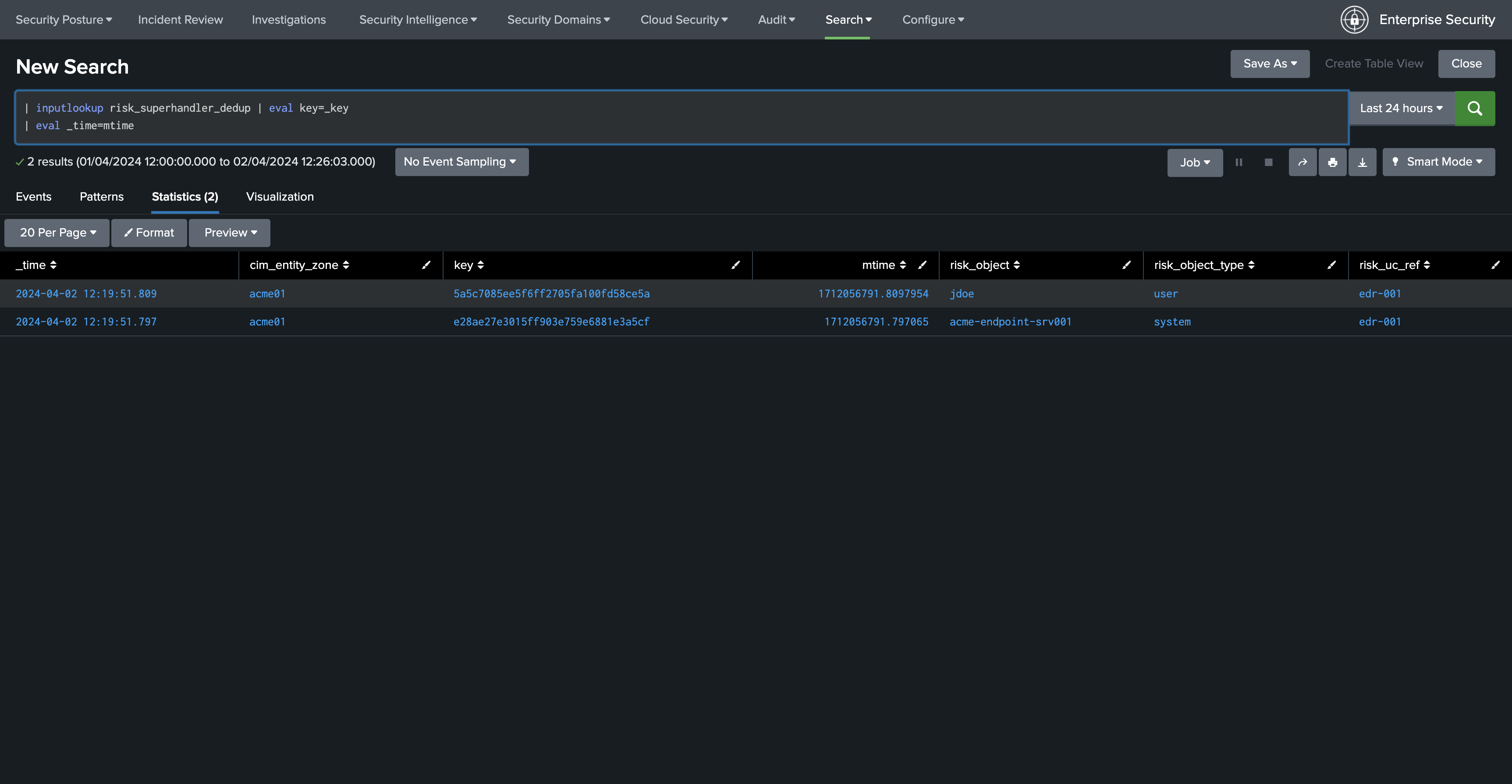

Let’s look at the KVstore collection:

| inputlookup risk_superhandler_dedup | eval key=_key
| eval _time=mtime

Let’s attempt to run again the same makeresults command, nothing will happen and there won’t be no new risk events for the same combination of factors, in the logs we will see:

(index="cim_modactions" sourcetype="modular_alerts:risk_super") OR (index=_internal sourcetype="risk:superhandler") "duplicate risk"

As long as the condition is not satisfied, no new risk event will be created for the same factors, showing up with the same message in the logs.

Once the time spent since the last risk event is higher than the min_sec_since_last_riskevent option, a new risk event will be created, and the KVstore records will be updated accordingly.

Additional options¶

The risksuperhandler custom command provides the following additional options compared to the modular alert:

uc_svc_account¶

You can use this option to avoid generating risks when the custom command is called unless the user running the command matches this value.

For instance:

| risksuperhandler risk_super uc_lookup_path="SplunkEnterpriseSecuritySuite/lookups/risk.csv" uc_ref_field="risk_uc_ref" uc_svc_account="svc-siem"

Will only generate risk events if the user username equals to “svc-siem”, allowing to prevent the risk generation unless the use case is run by the proper user (a good practice is to re-assign correlation searches to a dedicated Splunk service account!)

dedup¶

The dedup option can be enabled on both the alert action and the custom command, the option takes dedup accepts “True” / “False”:

enable or disable dedup capabilities, when enabled, the backend will not create a new risk event for the same combination of factors if the last registered risk event is not newer than last risk + min_sec_since_last_riskevent. (30 minutes by default)

It is meant to be used in combination with the following option:

min_sec_since_last_riskevent

Minimum seconds since last risk event, if the time spent in seconds since the last registered risk event for this combination of factors is not higher than this value, the event is considered as a duplicate risk event.

Multivalue and string delimited fields¶

Single and Multi Value fields¶

The risk objects value fields, as well as the threat object value fields can be:

Single value fields
Multivalue value fields (as from the results of a stats values(<myfield>))

These will be treated transparently, and lead to the creation of risk events accordingly.

Multivalue fields stored in a single value field using a delimiter¶

Alternatively, you can define risk object fields and/or threat object fields to be stored in a string delimited format which get expanded as multivalue fields, for instance, let’s assume that as part of the search results, the user field is like:

jsmith|jdoe|bfoo|jbar

You can specify in the Risk definition rule, the special option format_separator with the delimiter, the backend will automatically convert this into a Python list, and handle each value as in a multi-value context:

{"risk_object": "user", "risk_object_type": "user", "risk_score": 20, "risk_message": "Endpoint security event detected involving user=$risk_object$", "format_separator": "|"}

Let’s consider the following example, which mixes this plus multivalue fields:

| makeresults
    | eval dest="acme-endpoint-srv001", user="jsmith", process="very_bad.exe", file_hash=md5(process)
| append [ | makeresults
    | eval dest="acme-endpoint-srv001", user="jdoe", process="very_silly.exe", file_hash=md5(process) ]

```Simulate```

| stats values(user) as user, count, values(process) as process, values(file_hash) as file_hash by dest

```This will be a string delimited format```
| eval user=mvjoin(user, "|")

```This defines the use case reference```
| eval risk_uc_ref="edr-003"

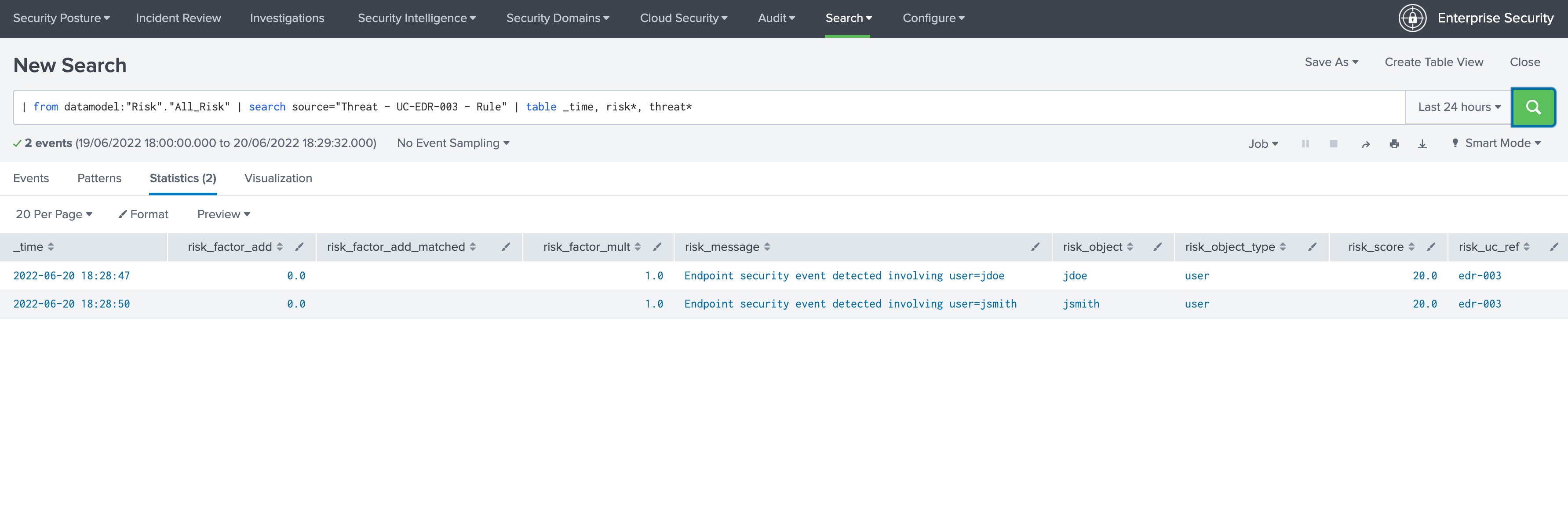

Which leads to the creation of risk events:

The same can be achieved for threat objects, example:

{"threat_object": "file_name", "threat_object_type": "file", "format_separator": "|"}

Blocklists for risks and threats¶

Blocklist for risk objects¶

You can define a list of patterns that cannot be accepted for a risk object, if the risk objet matches any of the patterns in the block list, it will not lead to the creation of a risk event.

To do this, either make the application to be visible (it is not visible by default) and go in Configuration / Advanced configuration, or configure it trough a local configuration file:

local/ta_risk_superhandler_settings.conf

[advanced_configuration]
blocklist_risk_object_patterns = "-","unknown","admin","Admin","administrator","Administrator"

The format is a command separated list of patterns between double quotes.

Null and empty values are natively taken in charge when the backend processes the events.

Blocklist for threat objects¶

You can define a list of patterns that cannot be accepted for a threat object, if the threat object matches any of the patterns in the block list, it will not be added to the risk event.

To do this, either make the application to be visible (it is not visible by default) and go in Configuration / Advanced configuration, or configure it through a local configuration file:

local/ta_risk_superhandler_settings.conf

[advanced_configuration]
blocklist_threat_object_patterns = "-","svc.exe"

The format is a command separated list of patterns between double quotes.

Null and empty values are natively taken in charge when the backend processes the events.

Troubleshoot¶

Logging level¶

All components honour a logging level that can be configured at the application level:

default/ta_risk_superhandler.conf:

[logging]
loglevel = INFO

You can enable the DEBUG mode to get a deep debug of each step of the execution by publishing a local version of this file.

You can as well make the application visible (go in Manage applications then edit properties), then access the application configuration page.

Alert action modular alert logs¶

The logs resulting from the modular alert are available at:

index="cim_modactions" sourcetype="modular_alerts:risk_super"

Streaming custom command Risk Super Handler¶

The logs resulting from the modular alert are available at:

index=_internal sourcetype="risk:superhandler"

riskjsonload generating custom command¶

The riskjsonload generating custom command is used to load the resulting JSON and submit to the collectrisk command from Splunk Enterprise Security, logs are available at:

index=_internal sourcetype="risk:jsonload"
